| Categories | Bently Nevada 3500 System |
|---|---|
| Brand Name: | Bently Nevada |
| Model Number: | 3500/22-01-01-00 3500/22-01-02-00 288055-01 146031-01 146031-02 |
| Certification: | CE |
| Place of Origin: | USA |
| MOQ: | 1pc |
| Price: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
| Delivery Time: | 12-16weeks |
| Packaging Details: | standard carton packing |
| Consumption: | 10.5 Watts |
| Front Panel: | USB-B |
| 10Base-T/ 100Base-TX I/O: | 10Base-T or 100Base-TX Ethernet, autosensing |
| 100Base-FX I/O: | 100Base-FX Fiber-Optic Ethernet |
| OK LED: | Indicates when the 3500/22M is operating properly |
| TX/RX LED: | Indicates when the 3500/22M is communicating with the other modules in the rack |
| TM LED: | Indicates when the 3500 rack is in Trip Multiply mode |
| CONFIG OK LED: | Indicates that the 3500 rack has a valid configuration |
| Company Info. |
| SC Automation Limited |
| Verified Supplier |
| View Contact Details |
| Product List |
Description
The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.
The TDI resides in the slot adjacent to the power supplies of a 3500 rack. It interfaces with M series monitors (3500/40M, 3500/42M, etc.) to continuously collect steady state and transient dynamic (waveform) data and pass this data through an Ethernet link to the host software. Refer to the Compatibility section at the end of this document for more information.
Static data capture capability is standard with the TDI. However, using an optional Channel Enabling Disk will allow the TDI to capture dynamic and high-resolution transient data as well. The TDI incorporates the communication processor function within the 3500 rack.
Although the TDI provides certain functions common to the entire rack, it is not part of the critical monitoring path and has no effect on the proper, normal operation of the overall monitor system for automatic machinery protection. Every 3500 rack requires one TDI or RIM, which always occupies Slot 1 (next to the power supplies).
Ordering Information
3500/22M TDI Module and I/O
3500/22-AA-BB-CC
A: Transient Data Interface Type | |
01 | Standard (use for standard monitoring |
B: I/O Module Type | |
01 | 10Base-T/100Base-TX Ethernet |
02 | 100Base-FX (Fiber Optic) Ethernet |
03 | 10Base-T/100Base-TX Ethernet with |
04 | 100Base-FX (fiber optic) Ethernet with |
C: Agency Approval Option | |
00 | None |
01 | CSA/NRTL/C (Class 1, Division 2) |
02 | Multi (CSA, ATEX, IECEx) |
Spares
288055-01 | Standard Transient Data |
123M4610* | 10 foot A to B USB cable |
146031-01 | 10Base-T/100Base-TX I/O |

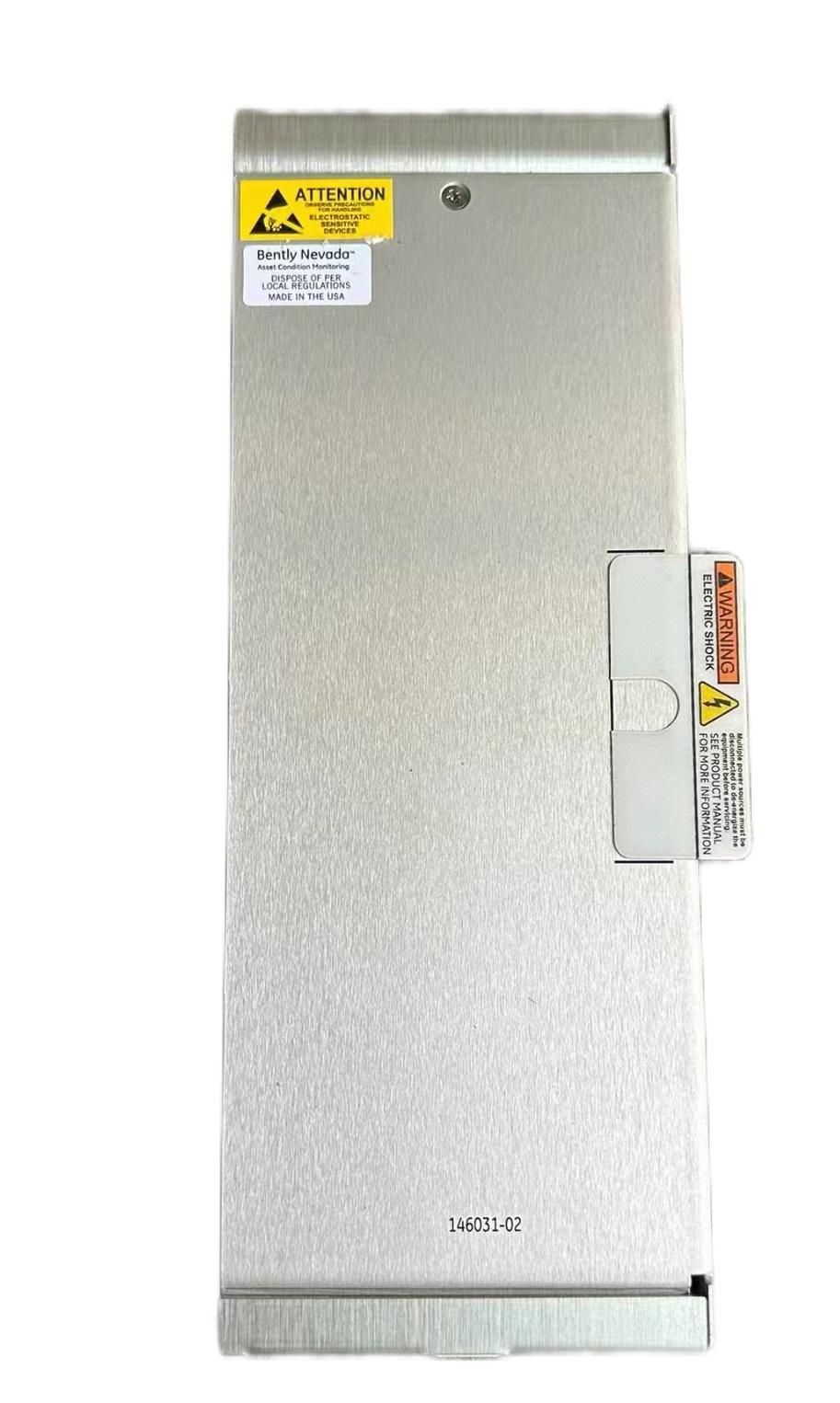

146031-02 | 100Base-FX (Fiber Optic) I/O |
161580 | 3500/22M TDI Operation and |
164466 | Network Accessories Datasheet |
00580441 | Connector header, internal |
00580436 | Connector header, internal |
111M5777 | Connector header, internal |
166M2390 | Connector header, push-inspring type (alternative for PN |
166M4363 | Connector header, push-inspring type (alternative for PN |
