15A Brushless ESC speed controller for RC model

Categories brushless ESC
Place of Origin: Shenzhen
Brand Name: Brotherhobby
Certification: CE ROHS
Model Number: BHM0150004
Style: Radio Control Toy
Type: Multicopter
Power: Battery
Material: Plastic
Radio Control Style: RC Hobby
input voltage: 2-4S(7.4V-14.8V) Lipo battery
Burst cunrrent: 18A up to 10 seconds
Continuous current: 15A
Software: Simonk
Refresh rate: 600Hz
BEC output: OPTO
Application: Multicopter
Color: any color is ok
Weight: 10g
Size: 31*18*5mm
MOQ: 10 pcs
Price: $8/pcs
Packaging Details: Plastic box with inner poly bag
Delivery Time: 5-10 days
Payment Terms: paypal, T/T, western union
Supply Ability: 100000pcs/month
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

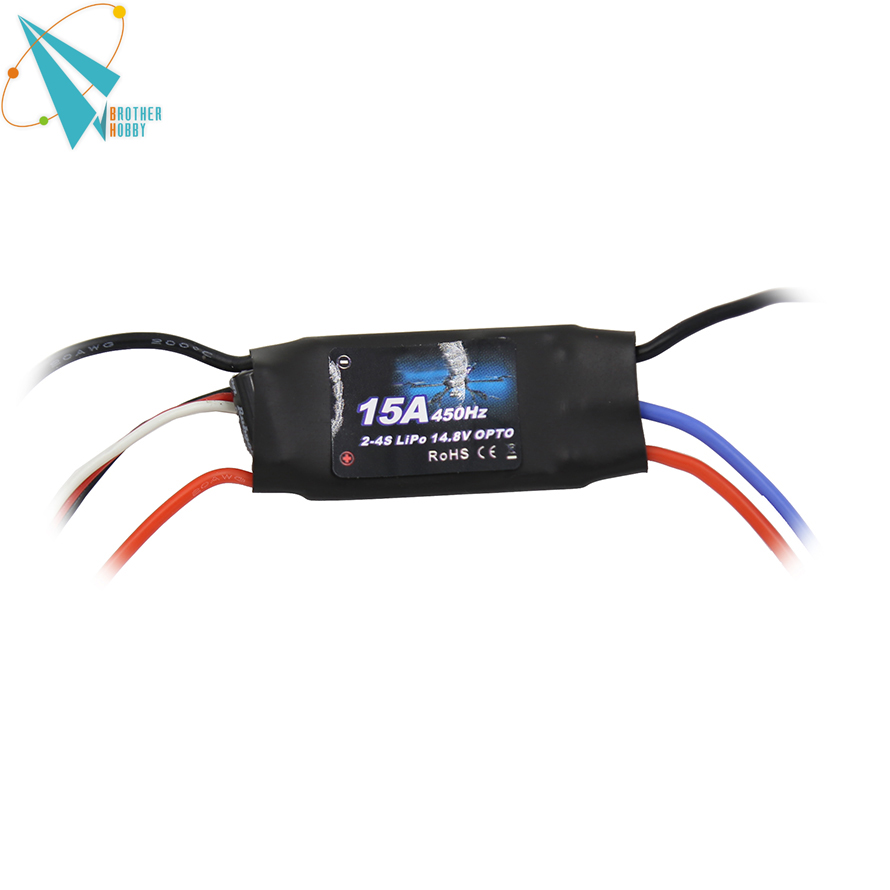

15A Brushless ESC speed controller for RC model

15A Brushless ESC speed controller for RC model


Quick Details

  • Style: Radio Control Toy
  • Type: Multicopter
  • Power: Battery
  • Material: Plastic
  • Scale: 1:5
  • Radio Control Style: RC Hobby
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Brother Hobby
  • Model Number: BHM0150004
  • input voltage: 2-4S(7.4V-14.8V) Lipo battery
  • Burst cunrrent: 18A up to 10 seconds
  • Continuous current: 15A
  • Software: Simonk
  • Refresh rate: 600Hz
  • BEC output: OPTO
  • Application: Multicopter
  • Color: any color is ok
  • Size: 31*18*5mm
  • Weight: 10g

Packaging Details:plastic bag
Delivery Detail:5-10days
Design Feature

1 Special core program for multi-rotor controllers greatly improves throttleResponse.


2 Specially optimized software for excellent compatibility with disc-type motors.


3 All settings except the timing are preset, making usage simple, highly intelligent and adaptive.


4 Compatible with various flight-control systems and supports a signal frequency of up to


621Hz(Note: all throttle signals over 500Hz are non-standard signals) .


5 Special drive chip has much better MOSFET driving effect than common driving circuit


consisted of discrete components.


6 MOSFET with extra-low resistance brings high performance and great current endurance.


7 Max Speed: 240000rpm for 2Poles BLM, 80000rpm for 6 poles BLM, 40000 rpm for12 poles


BLM.(BLM = BrushLess Motor).

Product Description

Models

BHM0150004

Continuous current

15A

Burst cunrrent

18A up to 10 seconds

Battery cells

2-4 cells(7.4V-14.8V) Li-po battery

BEC output

OPTO

Weight

10g

Size

31*18*5mm

Refresh rate

450Hz-600Hz

Certifications

CE,RoHS

Firmware

Simonk
