DIN1494 EN Standard JDB JFB Solid Graphite Lubricating Bushing Surface Finish Ra 0.8

DIN1494,EN Standard JDB,JFB solid graphite lubricating bushing Surface finish Ra 0.8

Specifications:

SF-1(du) oilless bearing bushing (PTFE Composite)

SF-2 (dx) slide bearing bushing (POM Composite)

FB090 (FB090G) bronze bushing

FB092 bronze bushing

DU bushing Bearing

Full range of size and customized

High quality OEM manufacturer with much experience

Description:

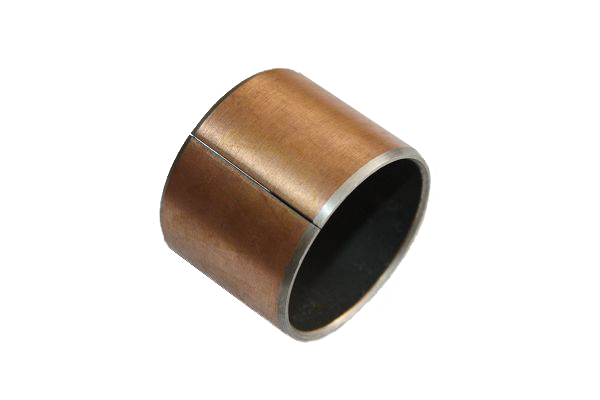

Du Bushing

1) Carbon steel material, PTFE layer

2) 0illess, self-lubricating

3) Low wear, low friction

Specifications

Body color: silver

Liner color: black or bronze.

Material: carbon steel, sintered porous bronze, PTFE layer.

Product size: according to customer's demand or drawings

Competitive advantage

1. Small quantity order acceptable.

2. Very tight tolerance.

3. Advanced equipment, excellent R&D team.

4. Strict quality control system.

5. Professional technical and rich experience.

6. Packaging details as client required.

Character

With a steel body, bronze liner and PTFE/lead overlay, our bushing processes excellent wear ability and

tremendous compressive strength.

It has good wear and friction performance over a range of loads, speeds and temperature conditions.

It can also perform well with lubrication, oilless. It is applied to all brands of excavators

1. Application Feature

1).Working under oilless or minim oil state, maintenance free or just need a litter maintenance

2).Resist Abrasion, low coefficient of friction long operation life.

3).Operation in -195°C~+280°C.4).Good mending, low-noise, non-pollution

4).Thin-walled structure, light in weight, which can reduce the machine to small size.

5).Forming a transferred film during operation to protect, safe and trouble free.

6).Low demands to the safe even no surface hardness treatment, which lower the cost of the mating

components.

7).No absorption to water/oil, small coefficient of thermal emption, good thermal conductivity and size

stability

8).The back of the steel strip can be plated with various metals, anti-corrosion

Production process of our bushings

1. Powder metallurgy process

A. Better metallurgical structure, better strength

B. Various types of automatic pressing machines from 3 tons to 630 tons. The ordered profiles

can be very flexible.

2. Investment casting process

Different volume of furnaces, the order quantity can be very flexible.

3. Machining

CNC, lathing, drilling, milling, grinding, wire cutting, polishing

Applications:

Car or motorbike shock absorber

Competitive Advantage:

Picture Show

XIAYI, founded in 2006, was set up in a beautiful city Ningbo, which is closed to Ningbo seaport and airport. XIAYI is a specialized factory that is engaged in producing auto spare parts, designing and manufacturing electromechanical & machinery parts and related automatic equipment. XIAYI has a strong R&D team with full of creative spirit. XIAYI develop new products and new equipment every year and was awarded two patents of utility model and invention patents.

The products include shock absorber piston, rod guider, base valve, oil seal, piston rod, bracket, spring seat, valves, guide pipe, bearing bush, copper bush, guide ring, PTFE ring and gasket, in addition XIAYI design and manufacture automatic machine such as banding machine and groove cutting machine.

As a manufacturer, XIAYI insists on pursuing better quality on and on. We control the quality from raw material to assure the consistency from one batch. We have carried out an integrated production system which is based on quality focus. We refer to the rigorous four aspects ( material importing control→ production line control→ QC department control→ logistic department control ) and quality control system to make sure all the products are intact before delivery.

As a seller, our products are exported to the whole world and sold nationally for more than 8 years. About 30% parts are exported to USA, Germany, France, Canada, Brazil, India, Malaysia etc., have set up good relationship with the customers from home and abroad. We have an intelligent marketing team who are exploring new markets, developing potential customers, solving problems and serving customers with orders well. We firmly believe that we are a competitive and friendly cooperator and our goal is for mutual benefit and long-term cooperation. XIAYI persons will always welcome customers from all over the world to visit and negotiate.
