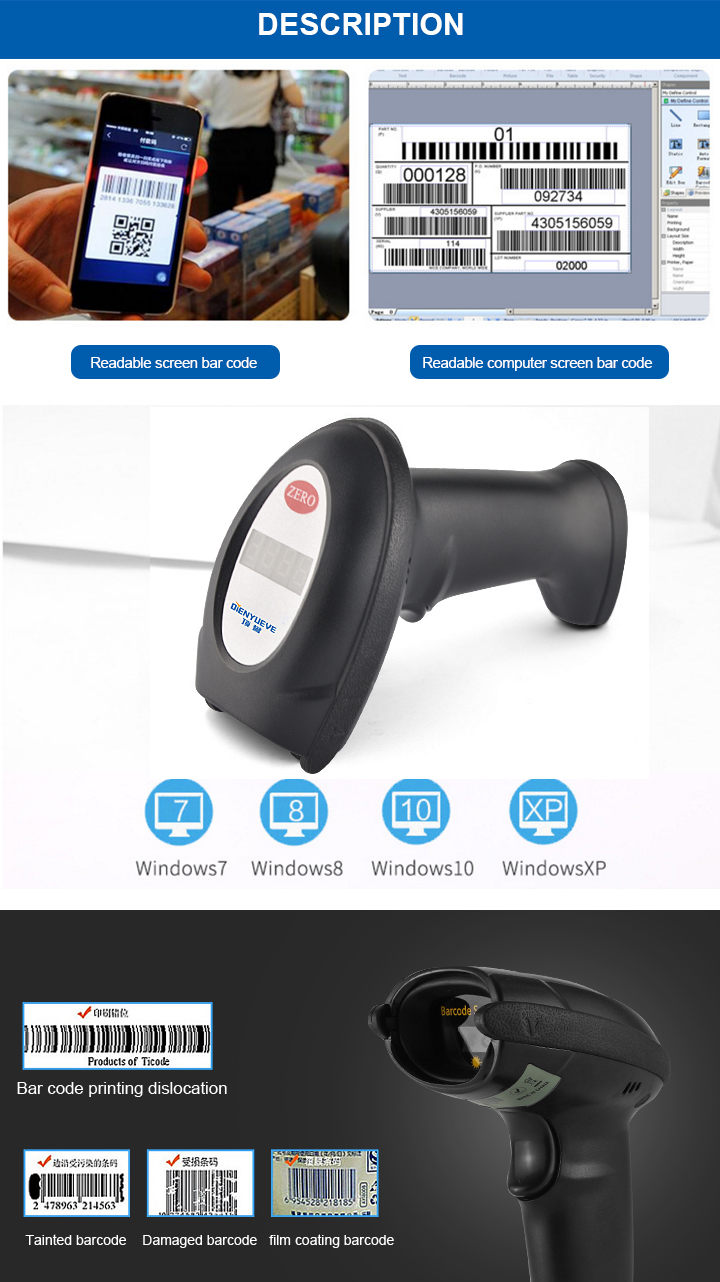

1d Handheld Wired Barcode Scanner USB Interface DC 5V 100mA Power Supply
Parameter
| Physical Parameter | |
| Weight | ≈165g(without cable) |
| Dimension | L175mm * W72mm * H100mm |
| Interface Type | USB |
| Communication way | USB(USB-KBW,USB-COM) |
| Power supply | DC 5V@100mA(work) |
| Performance | |
| Scan type | Linear CCD |
| Light source | Visible red light,625±10nm |
| CPU | 32-bit |
| Optical Resolution | 2500 |
| Resolution | ≥3mil/0.076mm(PCS90%,Code 39) |
| Decoding speed | 300 times/s |
| Depth of field | 30mm-700mm |
| Scan mode | Manual, Continuous,Auto sense |
| Scan angle | Roll±30°, Pitch±50°, Skew±50°(PCS90%,Code 39,10mil/0.25mm) |
| Print contrast signal | ≥20% |
| Ambient light | Indoor natural light Dark |
| Symbologies | UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc. |
| Environmental | |
| Operating temperature | -20℃ to 50℃ |
| Storage temperature | -40℃ to 70℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.8m |
| Transport vibration Test | 10H@125RPM |
| Depth of field | |
| 3MIL | 80-120mm (PCS90%,Code 39) |
| 13MIL | 30-320mm (PCS90%,EAN-13) |
| 20MIL | 30-450mm (PCS90%,Code 39) |
| 40MIL | 130-700mm (PCS90%,Code 39) |
| Accessories list | |
| Data cable | USB, connect the scanner to a host device. |
|
