4x2 HOWO Arm Roll Garbage Truck , 8 - 12m3 Bucket Garbage Truck With Arm

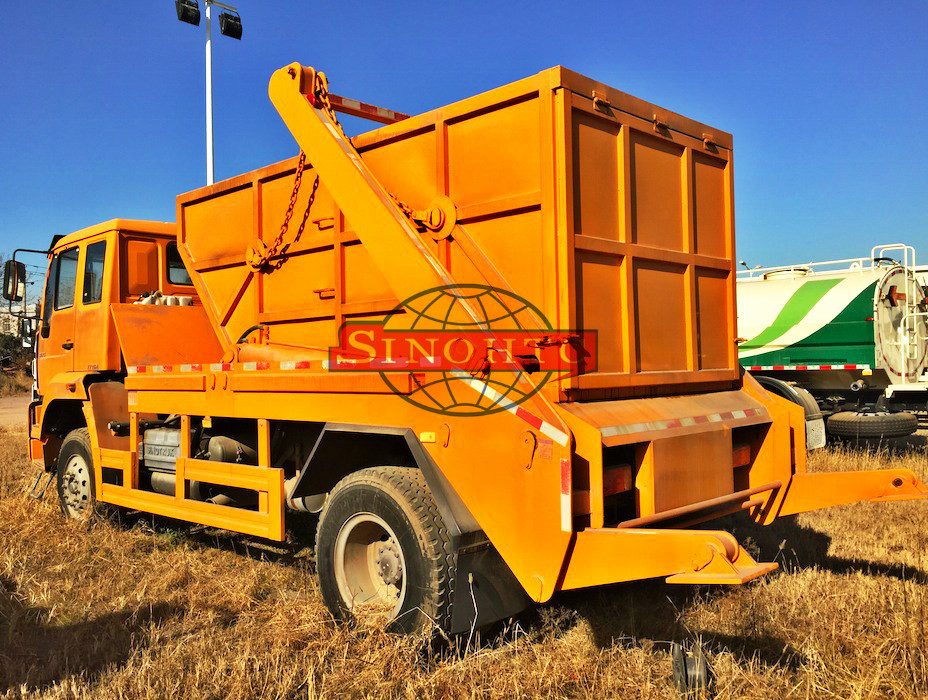

SINOTRUK 4x2 HOWO Skip truck with 8m3 , 10m3, 12m3 garbage truck bucket

This skip truck with 8-12 m3 garbage truck bucket, mounted SINOTRUK New HUANGHE chassis. Also could be mounted GOLDEN PRINCE or HOWO truck chassis as your needed.

The followed specifications are for HOWO 4x2 chassis model.

The garbage truck should be put down the landing legs before hoisting and hold it with the ground. Then through operating the piston rod of the swing boom cylinder to the right side, the swing arm will rotate along the clockwise direction to the position of the hoisting. The hanging hook on the swing arm is attached to the shaft of the truck, which is shown on the double dot, and the tilt hook is in the non-working position, which does not affect the movement of the carriage bucket. When hoisting, the swing arm cylinder reverses, and the swing arm is driven counterclockwise, and the carriage bucket is positioned on the auxiliary frame and fixed by the swing arm. Then tip the hook clockwise, buckle on the tilt axis of the truck, and finally collect the hydraulic landing leg. The lifting and lifting process of the carriage bucket is the opposite of the hoisting process.

When the truck need to dump the garbage in the bucket, it should be put down the landing leg of the hydraulic cylinder on the ground. The slanting hook on the accessory frame should be hooked on the tip of the truck. Then swing arm hydraulic cylinder was stretched out, and to the right swing arm driven by figure arrow rotation, due to the carriage bucket of motion constraints by dumping hook, makes the truck under the operation of swing arm, only around the carriage bucket tilt discharge shaft and the auxiliary frame tipping load vice frame formed by tilting the hook hinge pivot to turn the dump. Tilt end, swing arm hydraulic cylinder piston rod reverse back carriage is reset.

Qingdao Hetanch Truck Co., Ltd. is one of member of FAW Group before 2012. We are a group corporation that combines industry and trading. We supply products(axles, hydraulic cylinders and dump body) to FAW QINGDAO, SINOTRUK, SHACMAN, BEIBEN, FOTON, C&C and DAYUN. And at the same time we are the franchised dealer of FAW, CIMC, BEIBEN, SINOTRUK, SHACMAN, C&C, DAYUN series trucks. We can group buying from these manufacturer, so we can get more favorable price. Our products involve towing truck, semi-trailers, dump truck, concrete mixer truck and all kinds of special truck. As the distributor of them, we aim to bring the most reliable trucks to our customers worldwide. We also have set many branch offices in East-Asia, Middle-Asia, Africa and South-America.

With a team of professionals and the spirit of unceasingly innovation, we will always maintain the best attitude towards our respectable customers, because we adhere to our belief on the "high quality" principle.

We are customer focused and provide a superior quality service, take perfect service network, enthusiasm service attitude and strict service as norm from pre-sales to after-sales. We have our own office building and high character management team; We guarantee provide more perfect and satisfaction after-sales service for the customer. We sincerely invite friends and customers to visit our company to seek mutual development. Cooperate with us; You can get harmonious service like family.
